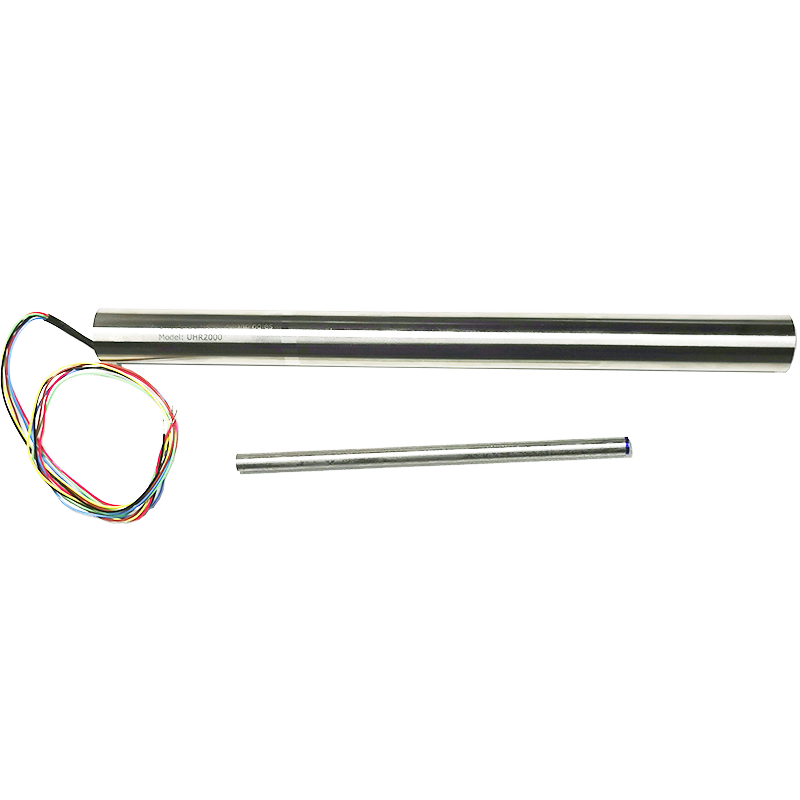

Univo Industrial Universal Displacement Sensor UHR Series General Purpose LVDT


Univo Industrial Universal Displacement Sensor UHR Series General Purpose LVDT
介绍: 概况UHR系列通用线性位移传感器提供大多数应用所需的理想性能。1.6mm的大孔到芯的径向间隙提供了充

SPECIFICATIONS

The UHR series general purpose LVDTs provide the optimum performance required for a majority of applications.
The large 1/16 inch [1.6mm] bore-to-core radial clearance provides for ample installation misalignments and therefore reduces the application costs.
Featuring a high output voltage and a broad operating frequency range, these versatile and highly reliable LVDTs deliver worry-free and precise position measurements.


Available in a variety of stroke ranges from ±0.05 to ±10 inches, the UHR series can be configured with a number of standard options including guided core,
small diameter/low mass core. High temperature  (200ºC) operation and Mild Radiation Resistance versions are also available (consult factory).
The UHR series is compatible with the full line of Measurement Specialties LVDT signal conditioners.

Like in most of our LVDTs, the UHR windings are vacuum impregnated with a specially formulated, high temperature, flexible resin, and the coil assembly is potted inside its housing with a two-component epoxy. This provides excellent protection against hostile environments such as high humidity, vibration and shock.


FEATURES

 High Reliability

 Large core-to-bore clearance

 Stroke ranges from ± 0.05 to ±10 inches

 AC operation from 400Hz to 5kHz

 Stainless steel housing

 Imperial or metric threaded core

 Many options and accessories

 0.25% linearity (100% stroke)

 Large 1/16” core-to-bore clearance

 Shock and vibration tolerant

 Electromagnetic/electrostatic shielding

 High temperature (220°C) version available

 Calibration certificate supplied with each unit


APPLICATIONS

 Process control

 Factory automation

 Materials testing

 Metrology

 Applications with large misalignments

 General industrial


PERFORMANCE SPECIFICATIONS

Industrial LVDT,Universal Displacement Sensor,Industrial Displacement Sensor,Displacement Sensor,position sensor,Customized displacement sensor, high-precision displacement sensor,high temperature resistant displacement sensorLimage.pngLVDT,UHR,UHR系列,UHR2000,工业位移传感器,工业位置传感器,位移传感器,位置传感器,LVDT位移传感器,LVDT位置传感器,定制位移传感器,位移传感器厂家,位移传感器厂商,univo,传感器,传感器厂家,传感器公司,传感器厂商,传感器产品,高温位移传感器,高精度位移传感器,笔式位移传感器,

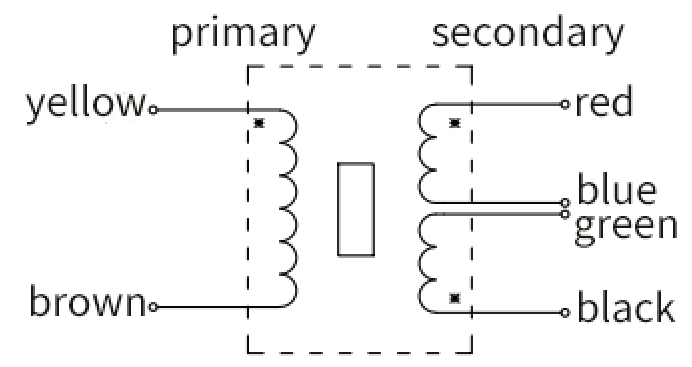

接线信息
